Multi-speed Electric Motor Stator Testing System With Modular Design

1. Test object: stator of multi-speed motor

Multi Speed Motor Stator Testing Machine Modular Design Low Power Consumption

2. Test items: AC Hipot, insulation resistance, surge, winding resistance, direction of rotation

3. Equipment outlook:

3.1 Dimension: height 1405mm * width 660mm * depth 840mm;

3.2 Dual station, and the supplier provide the test bench.

3.3 Integrated test bench, enclosed protective cover

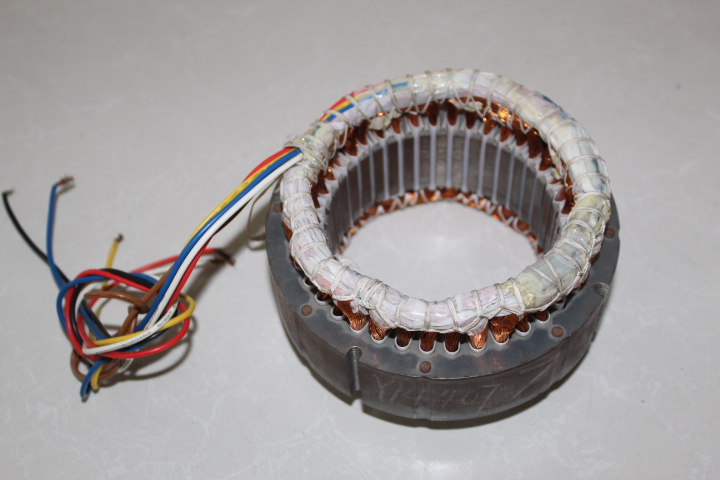

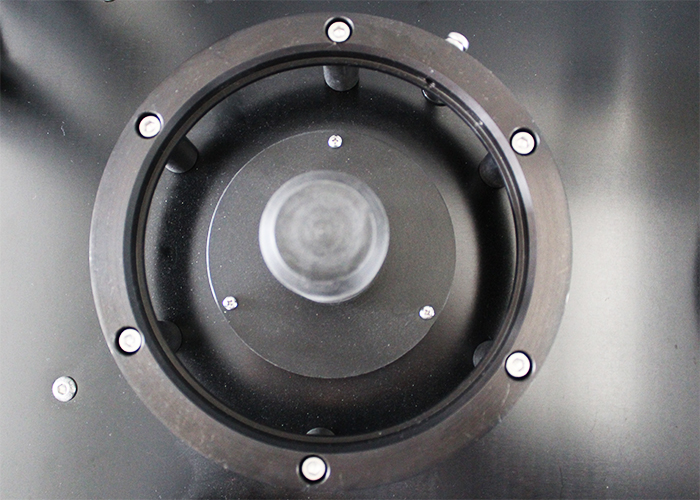

4. Reference Picture(the test bench will be designed as to the stator that need to be tested)

Multi Speed Motor Stator Testing Machine Modular Design Low Power Consumption

5. Technical specification

Test Item		Hipot, insulation resistance, surge, winding resistance and rotation
Test station		Dual station, standard equipped with test bench
Display		Keyboard + touch screen(10.4 ’)
AC Hipot
Output voltage setting range/ precision	AC 200～3000V ±(2%×setting value+10V)
breakdown current testing range/precision	0.10～20.00mA ±(2%×display value+0.05mA)
Hipot breakdown current presetting alarm range	Max:0.10～20.00mA；Min:0.00～20.00mA
Hipot current/resolution	±(2%×display value+0.05 mA)；0.01 mA
test time range/resolution	0.5～999.9s 0.1s/step
Insulation resistance
output voltage setting range/precision	DC 500V/1000V ±(2%×setting value+10V)
insulation resistance testing range/precision	1～500MΩ ≤100MΩ:±(3%×display value+0.5MΩ)； >100MΩ:±(5%×display value+5MΩ)
insulation resistance alarm setting range	Max:0～500MΩ；Min:1～500MΩ
test time range/resolution	0.5～999.9s 0.1s/step
Surge
output voltage setting range/precision	500～3000V ±(3%×display value+8V)
sampling frequency	100MHz
Surge graph comparison	Area, area difference, corona, phase. Three surge graphs will be displayed on the test interface
DC winding resistance
measuring range and precision	10.0mΩ～20KΩ ±(0.3%×display value+3 words) temperature compensation can be set
test time range/resolution	0.5～999s 0.1s/step
temperature compensation	Yes
temperature probe/measuring range	DS18b20 -10.0℃～+50.0℃
test precision	±0.5℃(range:-10℃～+50℃)
Direction of rotation
rotation	CW/CCW/still
